Pyramid Chart

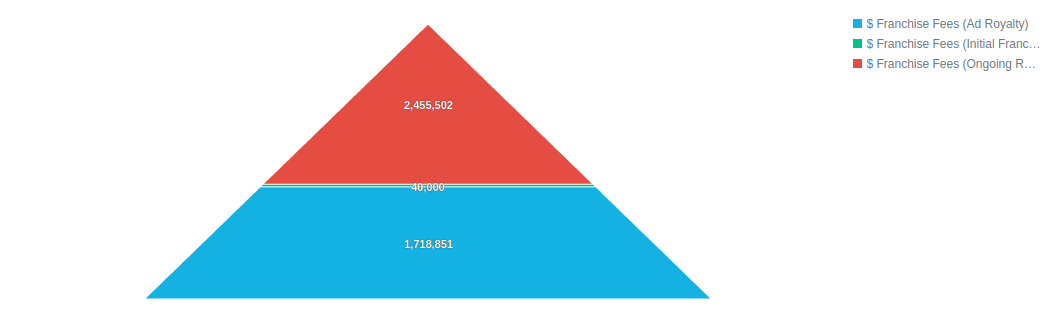

A pyramid chart displays values as proportional segments in a triangular shape, perfect for showing hierarchical structures and relative proportions. Pyramid charts are typically used for displaying demographic data, market segmentation, organizational structures, or workflows.

Structure

import "@gooddata/sdk-ui-charts/styles/css/main.css";
import { PyramidChart } from "@gooddata/sdk-ui-charts";

<PyramidChart
    measures={<measures>}
    config={<chart-config>}
    …
/>

Example

import "@gooddata/sdk-ui-charts/styles/css/main.css";
import { PyramidChart } from "@gooddata/sdk-ui-charts";
import * as Md from "./md/full";

const style = { height: 300 };

<div style={style}>
    <PyramidChart
        measures={[Md.$TotalSales]}
        viewBy={Md.Product.Name}
    />
</div>

Properties

Name	Required?	Type	Description
measures	true	IMeasure[]	An array of measure definitions. If you specify single measure, then you can also specify the viewBy attribute. If you specify multiple measures, then those measure values will be charted into a pyramid.
viewBy	false	IAttribute	The attribute definition that will be used to slice the single measure into multiple pieces that will be charted into a pyramid.
filters	false	IFilter[]	An array of filter definitions
sortBy	false	ISortItem[]	An array of sort definitions
config	false	IChartConfig	The chart configuration object
backend	false	IAnalyticalBackend	The object with the configuration related to communication with the backend and access to analytical workspaces
workspace	false	string	The workspace ID
locale	false	string	The localization of the chart. Defaults to `en-US`.
drillableItems	false	IDrillableItem[]	An array of points and attribute values to be drillable
ErrorComponent	false	Component	A component to be rendered if this component is in error state
LoadingComponent	false	Component	A component to be rendered if this component is in loading state
onError	false	Function	A callback when the component updates its error state
onExportReady	false	Function	A callback when the component is ready for exporting its data
onLoadingChanged	false	Function	A callback when the component updates its loading state
onDrill	false	Function	A callback when a drill is triggered on the component

Configuration

The following example shows the supported config structure with sample values for pyramid charts.

{
    colors: ["rgb(195, 49, 73)", "rgb(168, 194, 86)"],
    colorPalette: [{
        guid: "01",
        fill: {
            r: 195,
            g: 49,
            b: 73
        }
    }, {
        guid: "02",
        fill: {
            r: 168,
            g: 194,
            b: 86
        }
    }],
    colorMapping: [{
        predicate: (headerItem) => {
            return headerItem.measureHeaderItem && (headerItem.measureHeaderItem.localIdentifier === "m1_localIdentifier")
        },
        color: {
            type: "guid",
            value: "02"
        }
    }],
    legend: {
        enabled: true,
        position: "top",
    },
    dataLabels: {
        visible: "auto"
    },
    separators: {
        thousand: ",",
        decimal: "."
    }
}

Usage Patterns

Single Measure with ViewBy Attribute

When using a single measure with a viewBy attribute, each attribute value creates a segment in the pyramid:

<PyramidChart
    measures={[Md.$Revenue]}
    viewBy={Md.Region}
/>

Multiple Measures

When using multiple measures, each measure creates a segment in the pyramid. The viewBy attribute cannot be used in this case:

<PyramidChart
    measures={[Md.$Revenue, Md.$Profit, Md.$Costs]}
/>

Limits

Pyramid charts work best with a reasonable number of segments (typically 3-10) to maintain readability and visual impact.
