Heatmap

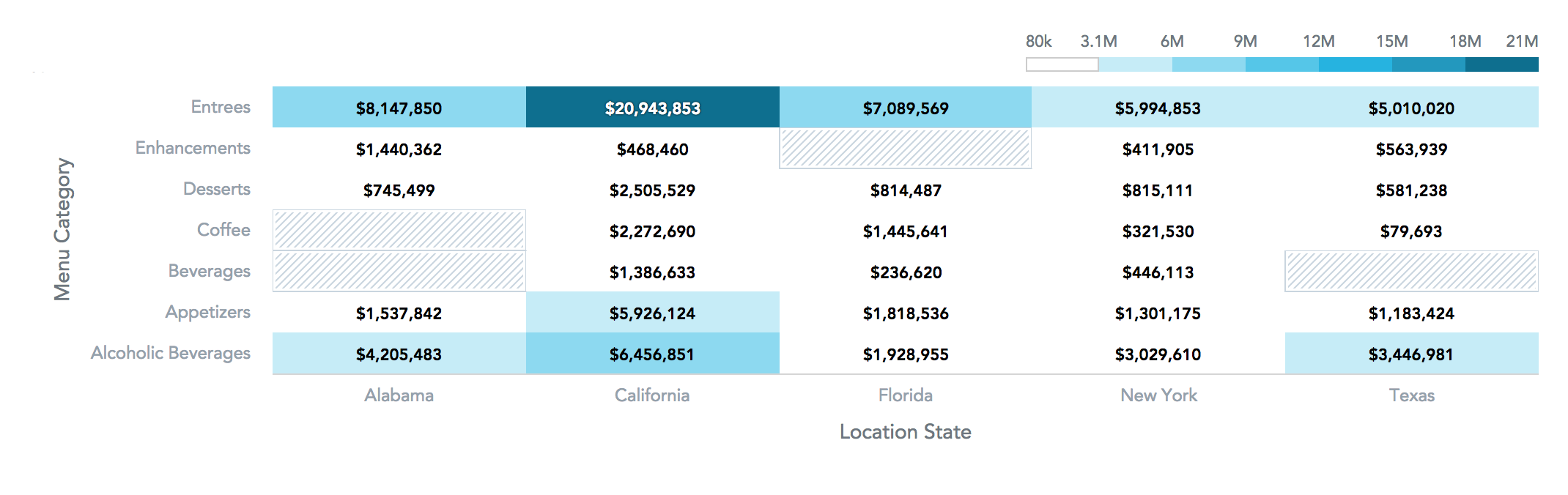

A heatmap represents data as a matrix where individual values are represented as colors. Heatmaps can help you discover trends and understand complex datasets.

Structure

import "@gooddata/sdk-ui-charts/styles/css/main.css";
import { Heatmap } from "@gooddata/sdk-ui-charts";

<Heatmap
    measure={<measure>}
    rows={<attribute>}
    columns={<attribute>}
    config={<chart-config>}
    …
/>

The following example shows the supported config structure with sample values. For the descriptions of the individual options, see ChartConfig.

{
    xaxis: {
        visible: true,
        labelsEnabled: true,
        rotation: "auto"
    },
    yaxis: {
        visible: true,
        labelsEnabled: true,
        rotation: "auto"
    },
    legend: {
        enabled: true,
        position: "top"
    },
    dataLabels: {
        visible: "auto"
    },
    separators: {
        thousand: ",",
        decimal: "."
    }
}

Example

import "@gooddata/sdk-ui-charts/styles/css/main.css";
import { Heatmap } from "@gooddata/sdk-ui-charts";

import * as Md from "./md/full";

<div style={{ height: 300 }} className="s-heat-map">
    <Heatmap
        measure={Md.$TotalSales}
        rows={Md.LocationState}
        columns={Md.MenuCategory}
        onLoadingChanged={this.onLoadingChanged}
        onError={this.onError}
    />
</div>

Properties

Name	Required?	Type	Description
measure	true	IMeasure	The measure definition
rows	false	IAttribute	The attribute definition
columns	false	IAttribute	The attribute definition
filters	false	IFilter[]	An array of filter definitions
config	false	IChartConfig	The chart configuration object
backend	false	IAnalyticalBackend	The object with the configuration related to communication with the backend and access to analytical workspaces
workspace	false	string	The workspace ID
locale	false	string	The localization of the chart. Defaults to `en-US`.
drillableItems	false	IDrillableItem[]	An array of points and attribute values to be drillable
ErrorComponent	false	Component	A component to be rendered if this component is in error state
LoadingComponent	false	Component	A component to be rendered if this component is in loading state
onError	false	Function	A callback when the component updates its error state
onExportReady	false	Function	A callback when the component is ready for exporting its data
onLoadingChanged	false	Function	A callback when the component updates its loading state
onDrill	false	Function	A callback when a drill is triggered on the component
