Donut Chart

A donut chart shows data as proportional segments of a disc and has a hollowed out center. Donut charts can be segmented by either multiple measures or an attribute, and allow viewers to visualize component parts of a whole.

Structure

import "@gooddata/sdk-ui-charts/styles/css/main.css";
import { DonutChart } from "@gooddata/sdk-ui-charts";

<DonutChart
    measures={<measures>}
    config={<chart-config>}
    …
/>

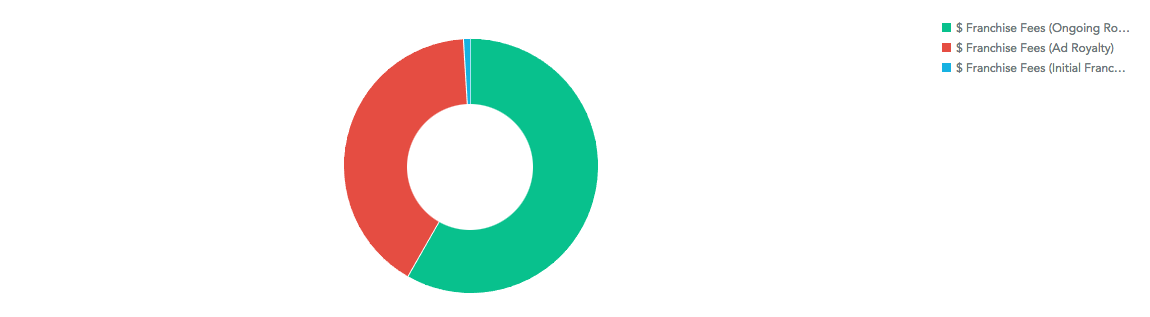

Example

import "@gooddata/sdk-ui-charts/styles/css/main.css";
import { DonutChart } from "@gooddata/sdk-ui-charts";

const style = { height: 300 };

<div style={style}>
    <DonutChart
        measures={[
            Md.$FranchiseFeesAdRoyalty,
            Md.$FranchiseFeesInitialFranchiseFee,
            Md.$FranchiseFeesOngoingRoyalty
        ]}
    />
</div>

Properties

Name	Required?	Type	Description
measures	true	IMeasure[]	An array of measure definitions
viewBy	false	IAttribute	The attribute definition
filters	false	IFilter[]	An array of filter definitions
sortBy	false	ISortItem[]	An array of sort definitions
config	false	IChartConfig	The chart configuration object
backend	false	IAnalyticalBackend	The object with the configuration related to communication with the backend and access to analytical workspaces
workspace	false	string	The workspace ID
locale	false	string	The localization of the chart. Defaults to `en-US`.
drillableItems	false	IDrillableItem[]	An array of points and attribute values to be drillable
ErrorComponent	false	Component	A component to be rendered if this component is in error state
LoadingComponent	false	Component	A component to be rendered if this component is in loading state
onError	false	Function	A callback when the component updates its error state
onExportReady	false	Function	A callback when the component is ready for exporting its data
onLoadingChanged	false	Function	A callback when the component updates its loading state
onDrill	false	Function	A callback when a drill is triggered on the component

The following example shows the supported config structure with sample values. For the descriptions of the individual options, see ChartConfig.

{
    colors: ["rgb(195, 49, 73)", "rgb(168, 194, 86)"],
    colorPalette: [{
        guid: "01",
        fill: {
            r: 195,
            g: 49,
            b: 73
        }
    }, {
        guid: "02",
        fill: {
            r: 168,
            g: 194,
            b: 86
        }
    }],
    colorMapping: [{
        predicate: (headerItem) => {
            return headerItem.measureHeaderItem && (headerItem.measureHeaderItem.localIdentifier === "m1_localIdentifier")
        },
        color: {
            type: "guid",
            value: "02"
        }
    }],
    legend: {
        enabled: true,
        position: "top",
    },
    dataLabels: {
        visible: "auto"
    },
    separators: {
        thousand: ",",
        decimal: "."
    }
}
