Combo Chart

A combo chart combines two types of visualizations, for example, a column chart and a line chart.

A combo chart can have one or two axes. If a combo chart has two axes, it is often referred to as a dual axis chart.

By default, a combo chart is displayed as a combination of a column chart and a line chart, with the secondary axis enabled (you can disable it).

Structure

import "@gooddata/sdk-ui-charts/styles/css/main.css";
import { ComboChart } from "@gooddata/sdk-ui-charts";

<ComboChart
    primaryMeasures={<primaryMeasures>}
    secondaryMeasures={<secondaryMeasures>}
    config={<chart-config>}
    …
/>

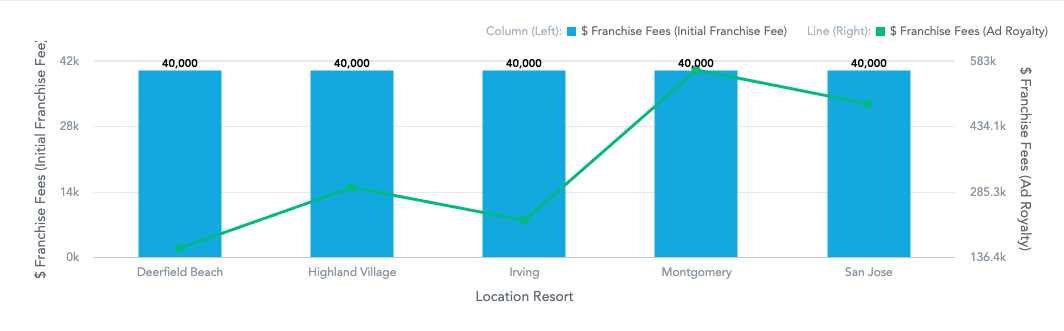

Example

import "@gooddata/sdk-ui-charts/styles/css/main.css";
import { ComboChart } from "@gooddata/sdk-ui-charts";
import * as Md from "./md/full";

const style = { height: 300 };

<div style={style}>
    <ComboChart
        primaryMeasures={Md.$FranchiseFeesInitialFranchiseFee}
        secondaryMeasures={Md.$FranchiseFeesAdRoyalty}
        viewBy={Md.LocationResort}
    />
</div>

Customize the type of a combo chart

A combo chart combines any two of the following chart types:

Column chart
Line chart
Area chart

To change the chart type for primary measures, set the config.primaryChartType property.

To change the chart type for secondary measures, set the config.secondaryChartType property.

import "@gooddata/sdk-ui-charts/styles/css/main.css";
import { ComboChart } from "@gooddata/sdk-ui-charts";

<ComboChart
    primaryMeasures={<primaryMeasures>}
    secondaryMeasures={<secondaryMeasures>}
    config={{
        primaryChartType: "column", // string
        secondaryChartType: "area" // string
    }}
    viewBy={<attribute>}
/>

Disable the secondary axis

To disable the secondary axis, set the config.dualAxis property to false.

import "@gooddata/sdk-ui-charts/styles/css/main.css";
import { ComboChart } from "@gooddata/sdk-ui-charts";

<ComboChart
    primaryMeasures={<primaryMeasures>}
    secondaryMeasures={<secondaryMeasures>}
    config={{
        dualAxis: false // boolean
    }}
    viewBy={<attribute>}
/>

Properties

Name	Required?	Type	Description
primaryMeasures	false	IMeasure[]	An array of primary measure definitions
secondaryMeasures	false	IMeasure[]	An array of secondary measure definitions
viewBy	false	IAttribute \| Attribute[]	The attribute definition or an array of two attribute definitions. If set to a two-attribute array, the first attribute wraps up the second one.
filters	false	IFilter[]	An array of filter definitions
sortBy	false	ISortItem[]	An array of sort definitions
config	false	IChartConfig	The chart configuration object
backend	false	IAnalyticalBackend	The object with the configuration related to communication with the backend and access to analytical workspaces
workspace	false	string	The workspace ID
locale	false	string	The localization of the chart. Defaults to `en-US`.
drillableItems	false	IDrillableItem[]	An array of points and attribute values to be drillable
ErrorComponent	false	Component	A component to be rendered if this component is in error state
LoadingComponent	false	Component	A component to be rendered if this component is in loading state
onError	false	Function	A callback when the component updates its error state
onExportReady	false	Function	A callback when the component is ready for exporting its data
onLoadingChanged	false	Function	A callback when the component updates its loading state
onDrill	false	Function	A callback when a drill is triggered on the component

The following example shows the supported config structure with sample values. For the descriptions of the individual options, see Chart Config.

{
    colors: ["rgb(195, 49, 73)", "rgb(168, 194, 86)"],
    colorPalette: [{
        guid: "01",
        fill: {
            r: 195,
            g: 49,
            b: 73
        }
    }, {
        guid: "02",
        fill: {
            r: 168,
            g: 194,
            b: 86
        }
    }],
    colorMapping: [{
        predicate: (headerItem) => {
            return headerItem.measureHeaderItem && (headerItem.measureHeaderItem.localIdentifier === "m1_localIdentifier")
        },
        color: {
            type: "guid",
            value: "02"
        }
    }],
    xaxis: {
        visible: true,
        labelsEnabled: true,
        rotation: "auto"
    },
    yaxis: {
        visible: true,
        labelsEnabled: true,
        rotation: "auto",
        min: "20",
        max: "30"
    },
    legend: {
        enabled: true,
        position: "top",
    },
    dataLabels: {
        visible: "auto"
    },
    grid: {
        enabled: true
    }
    separators: {
        thousand: ",",
        decimal: "."
    }
}
