Bubble Chart

A bubble chart shows data as bubbles using Cartesian coordinates. Bubble charts typically have three measures, one for the X-axis, one for the Y-axis, and one that determines the size of each bubble. The data is sliced by an attribute, with each bubble (an attribute item) noted with a different color.

Structure

import "@gooddata/sdk-ui-charts/styles/css/main.css";
import { BubbleChart } from "@gooddata/sdk-ui-charts";

<BubbleChart
    xAxisMeasure={<measure>}
    yAxisMeasure={<measure>}
    size={<measure>}
    viewBy={<attribute>}
    config={<chart-config>}
    …
/>

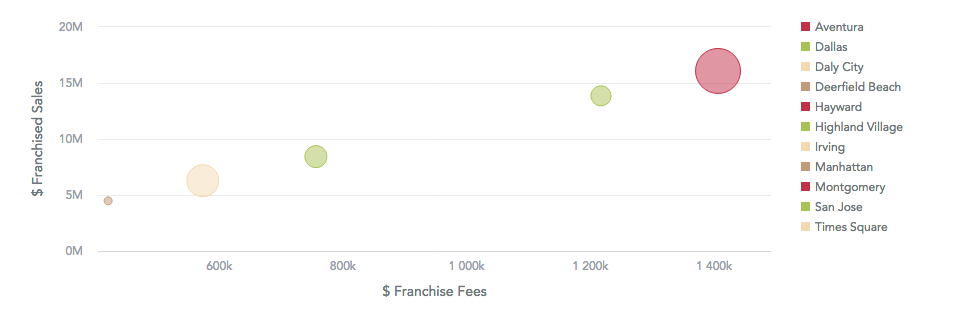

Example

import "@gooddata/sdk-ui-charts/styles/css/main.css";
import { BubbleChart } from "@gooddata/sdk-ui-charts";

import * as Md from "./md/full";

const style = { height: 300 };

<div style={style}>
    <BubbleChart
        xAxisMeasure={Md.$FranchiseFees}
        yAxisMeasure={Md.$FranchisedSales}
        size={Md.$AvgDailyTotalSalesByServer}
        viewBy={Md.LocationResort}
    />
</div>

Properties

Name	Required?	Type	Description
xAxisMeasure	false	IMeasure	The measure definition (at least one of `xAxisMeasure` or `yAxisMeasure` must be provided for the bubble chart to render properly)
yAxisMeasure	false	IMeasure	The measure definition (at least one of `xAxisMeasure` or `yAxisMeasure` must be provided for the bubble chart to render properly)
size	false	IMeasure	The measure definition that determines the size of the bubbles
viewBy	false	IAttribute	The attribute definition
filters	false	IFilter[]	An array of filter definitions
sortBy	false	ISortItem[]	An array of sort definitions
config	false	IChartConfig	The chart configuration object
backend	false	IAnalyticalBackend	The object with the configuration related to communication with the backend and access to analytical workspaces
workspace	false	string	The workspace ID
locale	false	string	The localization of the chart. Defaults to `en-US`.
drillableItems	false	IDrillableItem[]	An array of points and attribute values to be drillable
ErrorComponent	false	Component	A component to be rendered if this component is in error state
LoadingComponent	false	Component	A component to be rendered if this component is in loading state
onError	false	Function	A callback when the component updates its error state
onExportReady	false	Function	A callback when the component is ready for exporting its data
onLoadingChanged	false	Function	A callback when the component updates its loading state
onDrill	false	Function	A callback when a drill is triggered on the component

The following example shows the supported config structure with sample values. For the descriptions of the individual options, see ChartConfig.

{
    colors: ["rgb(195, 49, 73)", "rgb(168, 194, 86)"],
    colorPalette: [{
        guid: "01",
        fill: {
            r: 195,
            g: 49,
            b: 73
        }
    }, {
        guid: "02",
        fill: {
            r: 168,
            g: 194,
            b: 86
        }
    }],
    colorMapping: [{
        predicate: (headerItem) => {
            return headerItem.measureHeaderItem && (headerItem.measureHeaderItem.localIdentifier === "m1_localIdentifier")
        },
        color: {
            type: "guid",
            value: "02"
        }
    }],
    xaxis: {
        visible: true,
        labelsEnabled: true,
        rotation: "auto",
        min: "20",
        max: "30"
    },
    yaxis: {
        visible: true,
        labelsEnabled: true,
        rotation: "auto",
        min: "20",
        max: "30"
    },
    legend: {
        enabled: true,
        position: "right",
    },
    dataLabels: {
        visible: "auto"
    },
    grid: {
        enabled: true
    }
    separators: {
        thousand: ",",
        decimal: "."
    }
}
